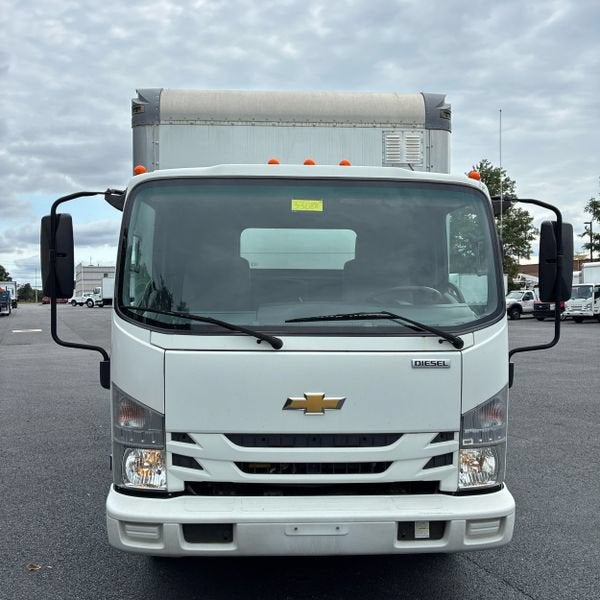

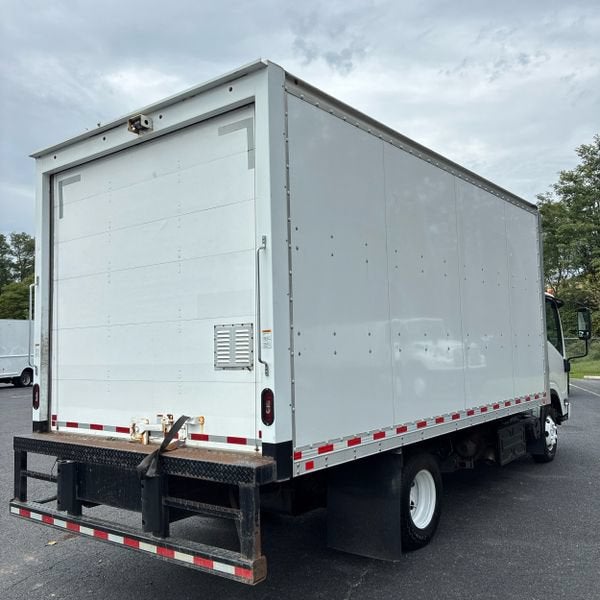

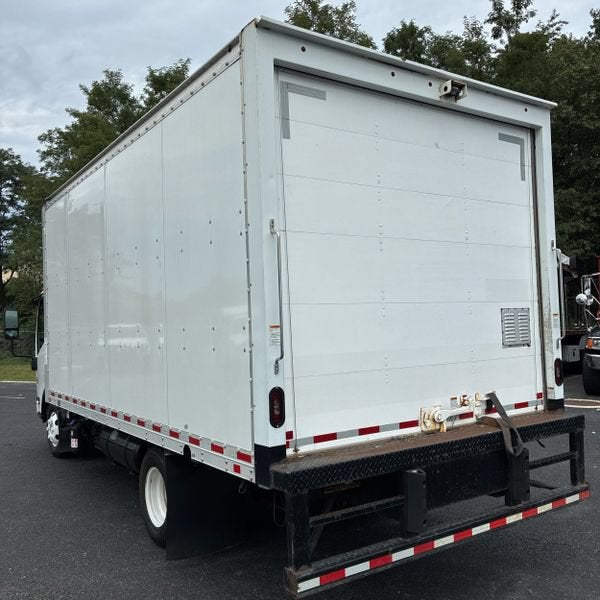

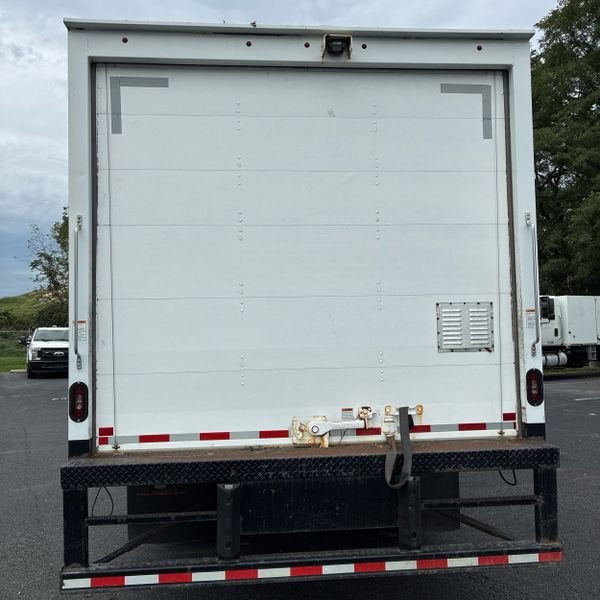

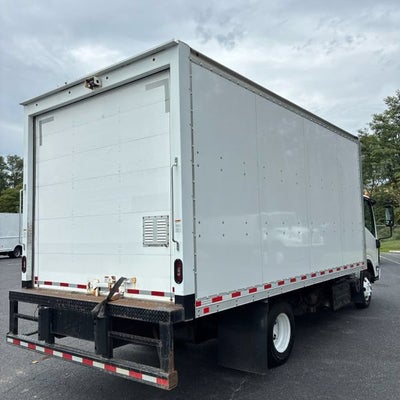

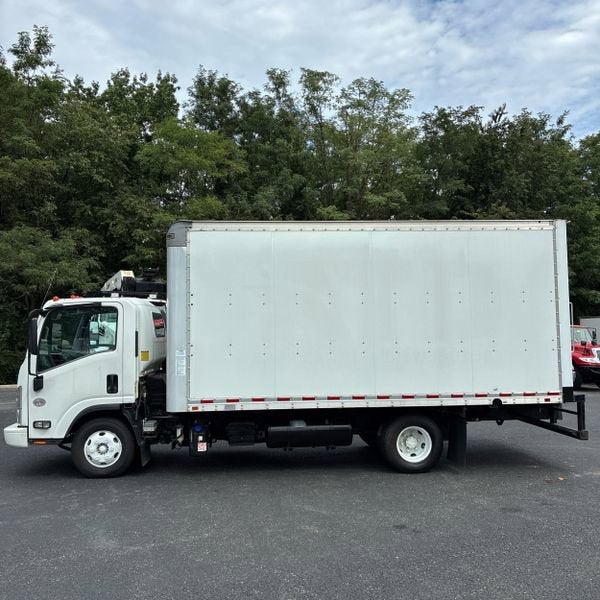

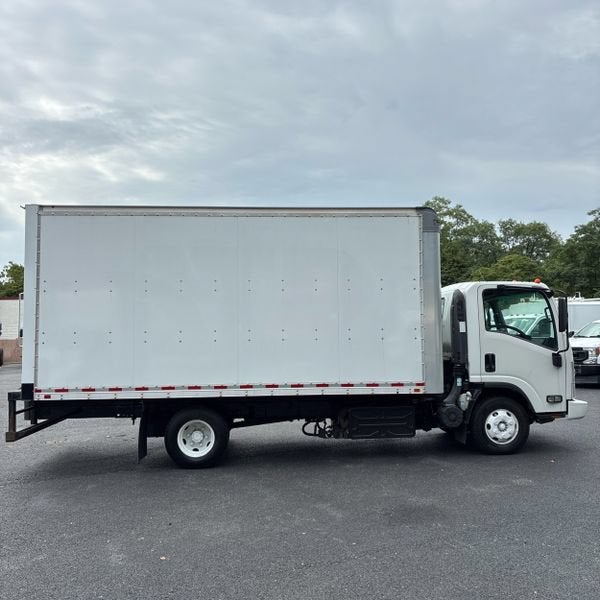

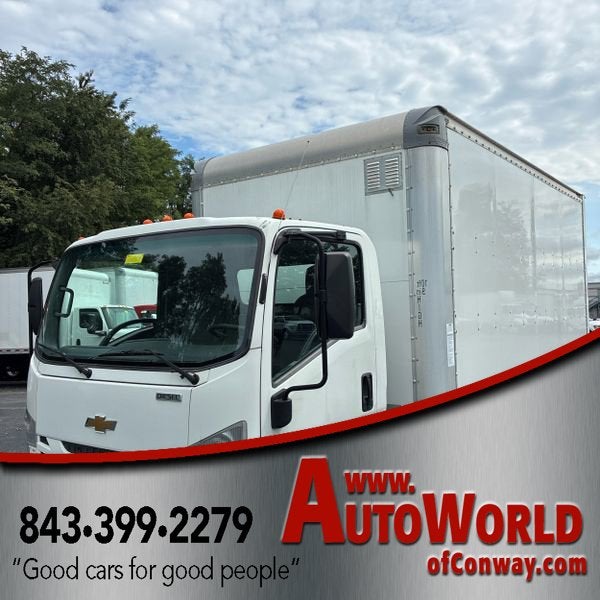

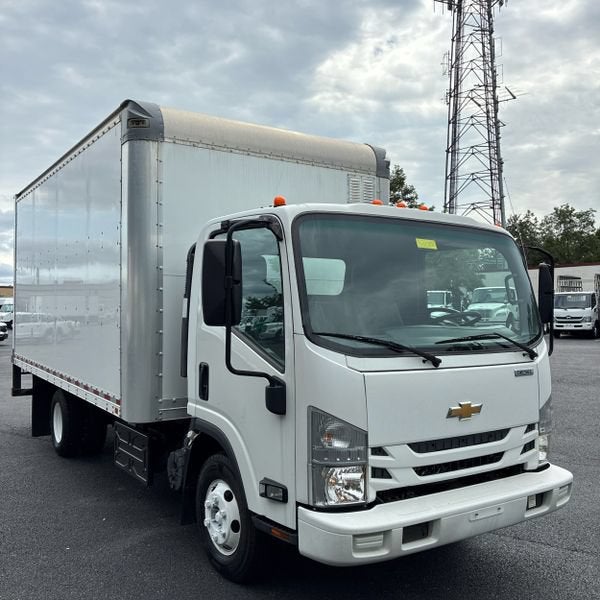

2021 Chevrolet 4500HD LCF Diesel

  • Call for Pricing & Availability
  • Disclaimer
    Disclaimers

Visit our Store

Vehicle Information

VIN: JALCDW162M7006174
Stock #: 006174
Model Code: CT33003
  • Body Style 2D Standard Cab
  • Exterior Color Arc White
  • Interior Color Very Dark Pewter

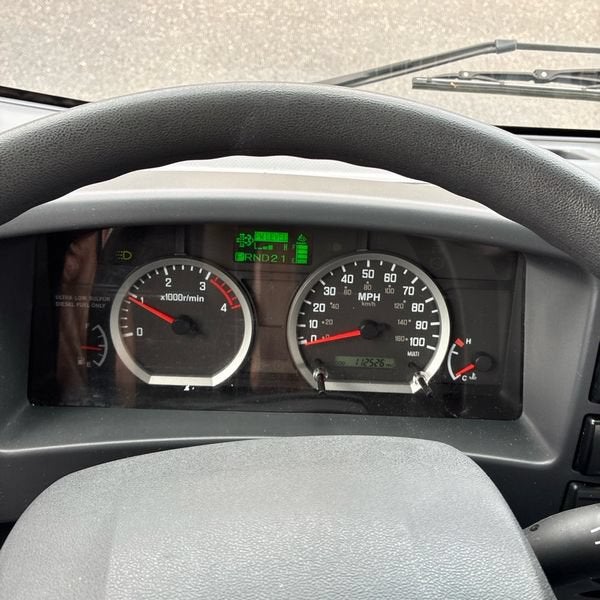

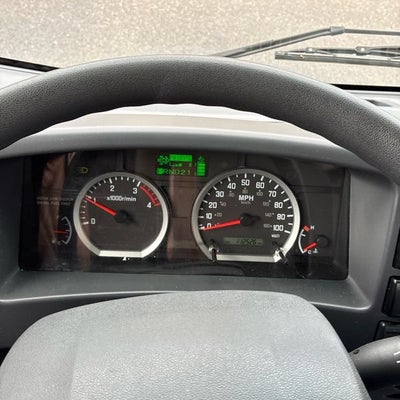

  • Mileage 112,526
  • Engine 4 Cyl - 5 L
  • Transmission Aisin 6-Speed Automatic
  • Fuel Type Diesel

Highlighted Features

Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
  • Bluetooth®
  • Turbo Charged Engine
  • Cruise Control

Dealer Comments

This 2021 Chevrolet 4500HD LCF Diesel Base is a purpose-built commercial workhorse ready for demanding job sites and heavy hauling. With its 5.2L 4-cylinder diesel engine paired with an Aisin 6-speed automatic transmission, this truck delivers reliable power and efficiency where you need it most. The white exterior and very dark pewter cloth interior create a clean, professional appearance backed by practical durability.

- AM/FM Stereo with CD Player & Bluetooth®
- Power Windows & Power Steering
- Air Conditioning
- Speed Control & Cruise Functions

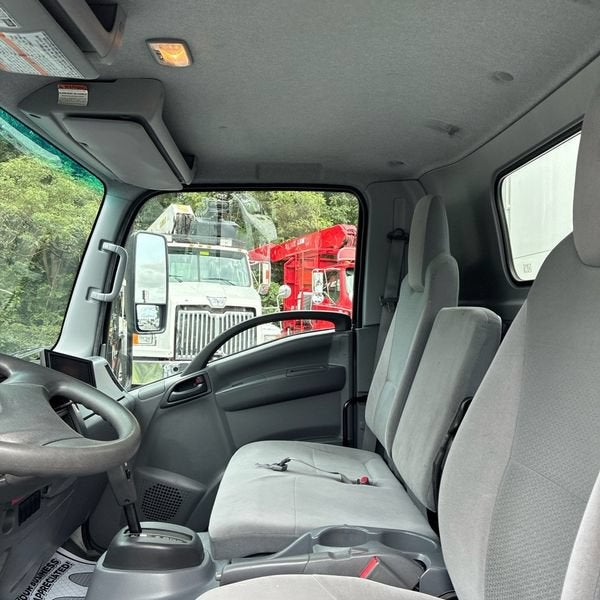

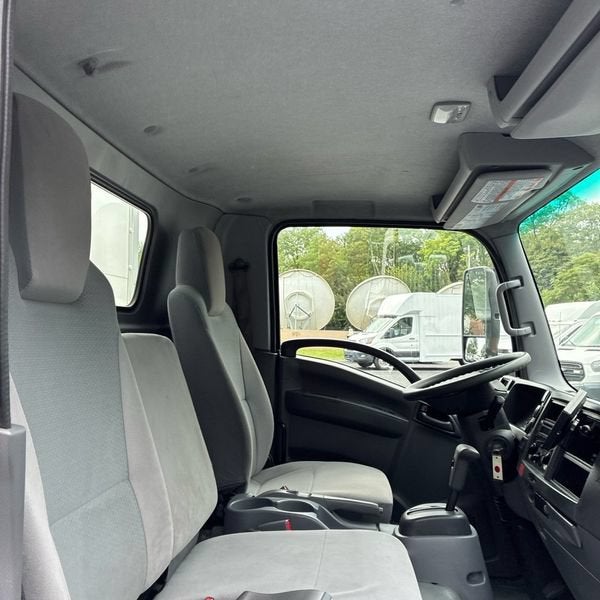

- Front High-Back Bucket Seats with Armrest
- Dual Rear Wheels for Enhanced Stability
- Additional 33-Gallon Driver-Side Fuel Tank
- 65-MPH Governor & Automatic Engine Shutdown
- Backup Alarm
- 16 Steel Wheels

This commercial-grade light-duty truck is engineered for serious work with features like dual rear wheels, an extended fuel tank capacity, and a backup alarm for safety on job sites. The telescoping tilt steering wheel and trip computer enhance operator comfort during long workdays. Come see this versatile 4500HD at our dealership and discover how it can serve your fleet or business needs.

All Features

  • Rear axle, 4.56 ratio
  • Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
  • Drivetrain, rear-wheel drive
  • Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
  • Alternator, 140 amps
  • Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
  • Incomplete vehicle certification
  • Wheelbase, 150" (381.0 cm)
  • GVWR, 14,500 lbs. (6577 kg)
  • Front suspension, 6,830 lbs. (3098 kg) tapered leaf, semi-elliptical steel alloy. Includes shock absorbers and stabilizer bar.
  • Rear Suspension, 9,880 lbs. (4481kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
  • Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering. ratio 18.8-20.9:1
  • Rear axle, 11,020 lbs. (4998 kg) R050, full-floating single-speed with oil lubricated rear wheel-bearings
  • Vehicle Application Truck
  • Exhaust brake
  • Fuel tank, 30 Gallon, (113L), rectangular fuel tank. mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill
  • Exhaust, single horizontal outlet
  • Tires, front, LT215/85R16 E 115/112 L BW ALS VAR1
  • Tires, rear, LT215/85R16 E 115/112 L BW ALS VAR1
  • Wheels, 16" x 6, K. steel
  • Assist steps
  • Glass, tinted
  • Mirror, outside left hand and right hand dual cab mounted exterior with integral convex mirror
  • Windshield wiper, pulse, wet arm
  • Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth®
  • Audio system feature, 2 speakers
  • Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat
  • Seat trim, Cloth
  • Cup holders
  • Floor mats
  • Steering wheel, urethane
  • Steering wheel, tilt and telescopic
  • Air conditioning, single-zone manual, integral in-dash mounted
  • Windows, power
  • Door locks, power
  • Cruise control, electronic, automatic
  • Windshield washer bottle access on passenger side dash when passenger-side door is open
  • Storage, door pockets
  • Lighting, interior dome
  • Storage, seatback pockets
  • Daytime Running Lamps
  • Preferred Equipment Group 1WT
  • 2 Speakers
  • AM/FM radio
  • CD player
  • Radio: AM/FM Stereo w/CD Player & Bluetooth®
  • Air Conditioning
  • Single Zone Manual Air Conditioning
  • Power steering
  • Power windows
  • ABS brakes
  • Front anti-roll bar
  • Speed control
  • Dual rear wheels
  • 65-MPH Governor
  • Automatic Engine Shutdown
  • Bumpers: body-color
  • Back Up Alarm
  • Driver door bin
  • Overhead console
  • Tachometer
  • Telescoping steering wheel
  • Tilt steering wheel
  • Trip computer
  • Front Bucket Seats
  • Front Center Armrest
  • Front High Back Bucket Seats
  • Tricoat Cloth Seat Trim
  • Additional 33 Gallon/125 L Driver-Side Mounted Fuel Tank
  • Passenger door bin
  • Wheels: 16" x 6.0" K Steel
  • Vehicle
    • Number of Passenger Doors: 2
    • Front Frame Rating: - TBD -
  • Electrical
    • Cold Cranking Amps @ 0° F (Primary): 750
    • Maximum Alternator Capacity (amps): 140
    • Maximum Alternator Watts: - TBD -
  • Cooling System
    • Total Cooling System Capacity (qts): 20.8
  • Weight Information
    • Gross Axle Wt Rating - Front (lbs): 5360
    • Gross Axle Wt Rating - Rear (lbs): 9880
    • Curb Weight - Front (lbs): 4061
    • Curb Weight - Rear (lbs): 2034
    • Gross Vehicle Weight Rating Cap (lbs): 14500
    • Gross Combined Wt Rating (lbs): 20500
  • Suspension
    • Suspension Type - Front: Independent w/Tapered Leaf Springs
    • Suspension Type - Rear: Independent w/Multi-Leaf Springs
    • Spring Capacity - Front (lbs): 6830
    • Spring Capacity - Rear (lbs): 9880
    • Axle Type - Front: I-Beam
    • Axle Type - Rear: Full-Floating
    • Axle Capacity - Front (lbs): 6830
    • Axle Capacity - Rear (lbs): 11020
    • Axle Ratio (:1) - Rear: 4.555
    • Shock Absorber Diameter - Front (mm): 42.0
    • Shock Absorber Diameter - Rear (mm): 42.0
    • Stabilizer Bar Diameter - Front (in): 1.65
  • Brakes
    • Brake Type: Pwr
    • Brake ABS System: 4-Wheel
    • Disc - Front (Yes or ): Yes
    • Front Brake Rotor Diam x Thickness (in): 11.5 x 9.4
    • Drum - Rear (Yes or ): Yes
    • Rear Drum Diam x Width (in): 12.6 x 3.94
  • Tires
    • Front Tire Order Code: 2TA
    • Rear Tire Order Code: 3TA
    • Front Tire Size: LT215/85R16
    • Rear Tire Size: LT215/85R16
    • Front Tire Capacity (lbs): 2680
    • Rear Tire Capacity (lbs): 2470
    • Revolutions/Mile @ 45 mph - Front: 682.9
    • Revolutions/Mile @ 45 mph - Rear: 682.9
    • Number Of Tires Front: 2
    • Number Of Tires Rear: 4
  • Wheels
    • Front Wheel Size (in): 16 x 6
    • Rear Wheel Size (in): 16 x 6
    • Front Wheel Offset (mm): 127
    • Rear Wheel Offset (mm): 127
    • # of Bolt Holes - Front: 6
    • # of Bolt Holes - Rear: 6
    • Front Wheel Material: Steel
    • Rear Wheel Material: Steel
    • Front Bolt Pattern: 6 Hole JIS 8.75"
    • Rear Bolt Pattern: 6 Hole JIS 8.75"
  • Steering
    • Steering Type: Pwr
    • Steering Ratio (:1), On Center: 18.8-20.9
    • Steering Ratio (:1), At Lock: 18.8-20.9
    • Turning Diameter - Curb to Curb (ft): 42.7
    • Turning Diameter - Wall to Wall (ft): 48.9
  • Frame
    • Frame Type: Ladder-Type C-Section
    • Sect Modulus Rails Only (in³): 7.20
    • Frame RBM (N/A): 316800
    • Frame Strength (lbs): 44000
    • Frame Thickness (in): 8.50 x 2.76 x 0.24
  • Fuel Tank
    • Fuel Tank Capacity, Approx (gal): 30.0
    • Fuel Tank Location: Frame Rail
  • Exterior Dimensions
    • Wheelbase (in): 150.0
    • Length, Overall w/o rear bumper (in): 241.5
    • Width, Max w/o mirrors (in): 81.30
    • Height, Overall (in): 90.80
    • Overhang, Front (in): 48.40
    • Overhang, Rear w/o bumper (in): 43.10
    • Front Bumper to Back of Cab (in): 70.7
    • Cab to Axle (in): 127.5
    • Cab to End of Frame (in): 170.6
    • Ground to Top of Load Floor (in): - TBD -
    • Ground to Top of Frame (in): 31.1
    • Frame Width, Rear (in): 33.5
    • Ground Clearance, Front (in): 7.5
    • Ground Clearance, Rear (in): 7.5
    • Body Length Default Value (ft): - TBD -
  • Interior Dimensions
    • Passenger Capacity: 3
    • Front Head Room (in): 38.40
    • Front Leg Room (in): 29.50
    • Front Shoulder Room (in): 70.70
    • Front Hip Room (in): 67.70
  • Summary
    • Vehicle Name: Chevrolet 4500HD LCF Diesel
    • Body Style: Regular Cab Chassis Cab
  • Medium Duty Performance
    • Driver Ratio: - TBD -
    • Torque @ Clutch Engage (ft-lbs): - TBD -
    • Torque Converter: 1.7639
    • Static Loaded Radius (in): - TBD -
    • Max Speed For Gradeability: - TBD -
